Products

Straight Length

The straight section is responsible for carrying the busbar current, with a protection level of IP42, IP54. The length of the straight section can be customized according to customer needs, with a minimum increment of 600mm, up to a maximum of 2400mm.

Tap -off

Industrial sockets are located at the bottom of the plug box, which does not occupy the installation space in front, and can also be easily plugged and unplugged when the two-row plug box is placed in front and back. When the configuration of the industrial plug is bent, its *** installation height requirement is a little lower than that of the side-out line plug box, and the installation space is smaller; the plug box is equipped with a smart monitoring meter, which can monitor the full electricity of the load, and is equipped with a working indicator light, which shows the voltage and current in real time; customers can choose the side-out line or the bottom-out line plug box according to the site space conditions.

Connectors

For connecting two busbar boxes.

Feed unit

Feeding unit with cable feeder box, flange, power supply to the busbar through cable or copper bar, monitoring optional.

Smart plug box

The traditional plug-in box can be integrated with the intelligent monitoring system, which can monitor the system operation status and power quality in real time while ensuring normal power supply, ensuring the reliability and stability of power supply; Multiple safety interlock designs can be optionally equipped: if the installation is not in place, power cannot be connected; on the contrary, if the power is not cut off, the box door cannot be opened, and the operation cannot be performed; Waterproof design: The outdoor box body is required to have a flip edge design, and the protection level reaches IP54; Grounding safety design: No matter how the plug is inserted and pulled, the grounding is *** separated, fully ensuring personal safety; Operation safety design: The internal protective guard plate is designed to avoid manual misoperation contact with the live body; Intelligent monitoring modules can be added to monitor the operation status in real time and ensure the safety of operation.

Industrial connectors

Industrial connectors are used to connect small busbars to cabinets, and can connect the distribution of this busbar to each cabinet. Copper bars are connected to industrial connector sockets through fire-resistant cables to ensure the service life of the connecting cables; Available in single-phase or three-phase options; Cancel the plug-in box and embed it into the busbar body to reduce on-site engineering workload, achieve high-density one-to-one power supply and distribution solutions, and reduce procurement costs.

Straight Length

The Straight Length is responsible for carrying the current of the busbar, with a protection level of IP42.

Feed unit

The feeding unit includes cable feeder box, flange, and supplies power to the bus duct through cables or copper bars.

Connectors

Connectors are used to connect two sections of busbar.

Phase-change Type tap-off

The height of the phase-changing Type tap-off is consistent with the height of the low-outlet plug box, and it is equipped with intelligent monitoring instruments, which can monitor the full electricity load. This plug box is equipped with a phase-changing switch, which can perform phase adjustment when the power supply system is unbalanced. The plug box is equipped with a working indicator light, which shows the voltage and current in real time.

Side outlet Type tap-off

The industrial socket is located on the panel of the Type tap-off and requires a certain amount of horizontal installation space. When two rows of plug-in boxes are placed front and back, it is not convenient to plug and unplug the industrial socket. Therefore, when choosing a side-out line plug-in box, the plug-in boxes in front and back need to be staggered a little to facilitate the plugging and unplugging of the industrial socket. The plug-in box is equipped with a smart monitoring meter, which can monitor the full electricity load of the load, and is equipped with a working indicator light, which shows the voltage and current in real time; customers can choose between a side-out line or a bottom-out line plug-in box according to the site space conditions.

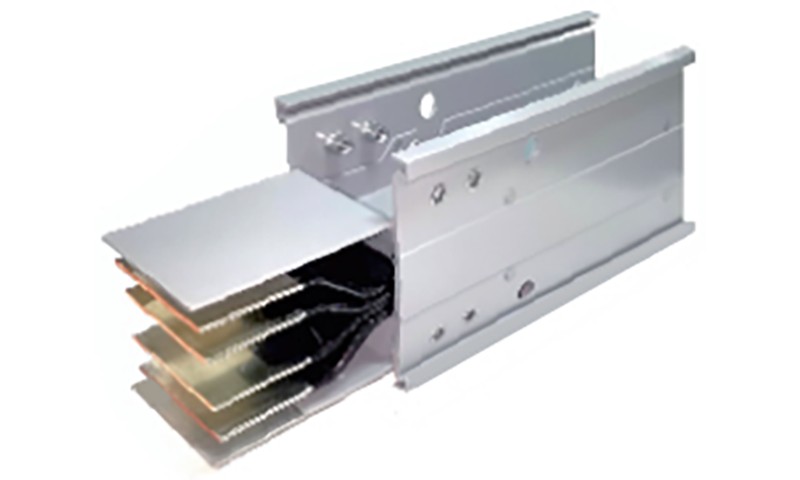

Straight line segment

JiaMin Technology's low-voltage dense LB-3 busbar is a new type of high-protection dense busbar system that can be equipped with an intelligent temperature monitoring system, which can monitor and warn of the customer's operating equipment in real time, making the customer's daily operation and maintenance simpler and more convenient.
