Feeding unit with cable feeder box, flange, power supply to the busbar slot via cable or copper bar, monitoring optional.

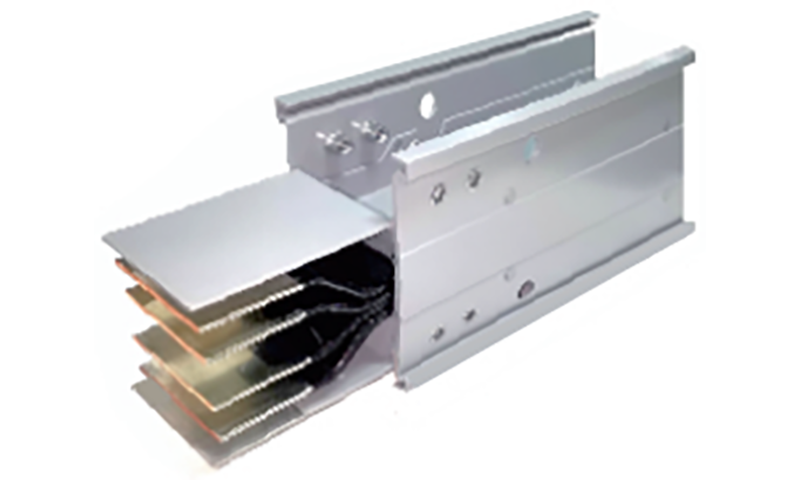

The straight section is responsible for carrying the current of the busbar, with a protection level of IP42 IP54.

The junction box is mainly responsible for sub-distributing the power from the main line to various electrical devices or modules.

Elbow for direction change in the busbar system.

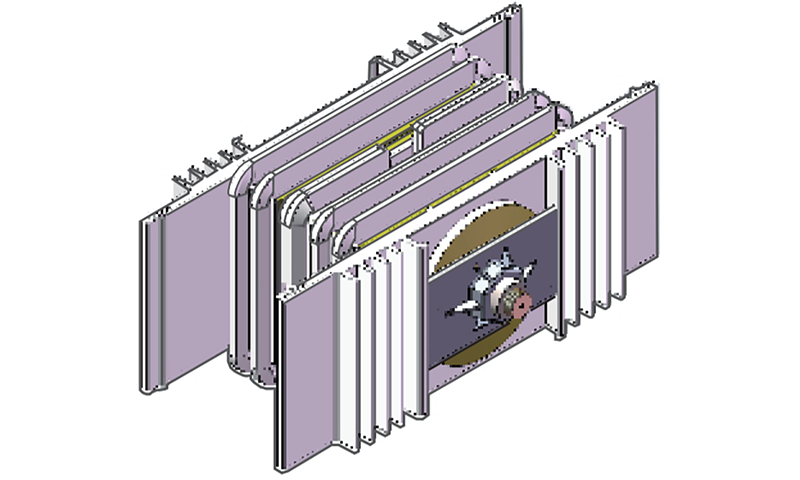

Connectors are used to connect two sections of busbar.

End caps are used to protect the end of the busbar, effectively isolating people from the busbar and ensuring personal safety.

High quality conductor

Full-length tin/silver plating process; purity ≥ 99.95%, conductivity ≥ 97.5%;

Excellent insulation material

DuPont B-class insulation material, with a heat resistance temperature of over 130℃; four to six layers between phases, with a single-layer withstand voltage of over 10,000V; environmentally friendly, non-toxic and halogen-free, in compliance with the RoHS directive;

High-strength shell

High-strength aluminum-magnesium alloy material, tensile strength ≥ 230 MPa; fully automatic intelligent self-piercing riveting process, strong, maintenance-free;

Excellent protection capability

Adopted with embedded protection design, the protection grade is above IP54/IP65/IP66; the salt spray test can reach more than 1800h;

Versatility

The universal interface***can be extended to 1250A, convenient for capacity expansion and expansion, and users only need to increase or replace the plug-in box when using it;

Smart monitoring module

Temperature and electrical parameter data collection at any point within 1000m, intelligent monitoring; data that can be collected includes: temperature, temperature rise, current, voltage, power, insulation, leakage, etc.;

Intelligent management module

A brand new intelligent management system that can replace traditional labor-intensive manual patrol and security inspection work, saving management costs; the sub-health warning function can detect and handle problems in time to reduce the accident rate; data visualization, real-time display, clear interface, and convenient management.

Smart monitoring

Smart automatic collection of data collection points and areas through different data collection modules, automatic upload to the management center.

Smart management

Data models can be established according to different project requirements, and the results of data analysis can be converted into visualized forms such as data tables, charts, curves, etc.; it can provide a variety of options according to the actual operation and management needs of different users, such as PC end management, mobile end management, multi-interface display, etc.; it can be connected with building monitoring, fire monitoring system.

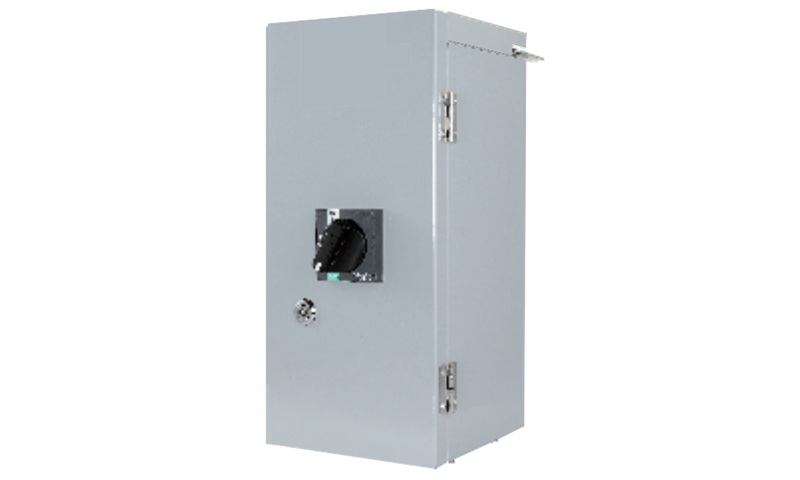

Smart plug box

The traditional plug-in box can be integrated with the intelligent monitoring system, which can monitor the system operation status and power quality in real time while ensuring normal power supply, ensuring the reliability and stability of power supply; Multiple safety interlock designs can be optionally equipped: if the installation is not in place, power cannot be connected; on the contrary, if the power is not cut off, the box door cannot be opened, and the operation cannot be performed; Int

Multi-functional connector

The connector is combined with the plug box, and the fault point is reduced and the reliability is improved through functional integration; the contact area of the lap surface is increased, and the electrical performance is better; three types of forms are available for flexible matching and replacement, and the application scope is wider.

Multiple approaches combined

In the same project, according to different needs, different regions' actual situation and different usage functions, a variety of connector forms can be used in combination, flexible and versatile, and strong adaptability.

Life cycle cost advantage

From planning to design to implementation and delivery, and even to maintenance, our company provides full tracking to create the best solution for our customers.
